Drivers & Controllers
%203.png)

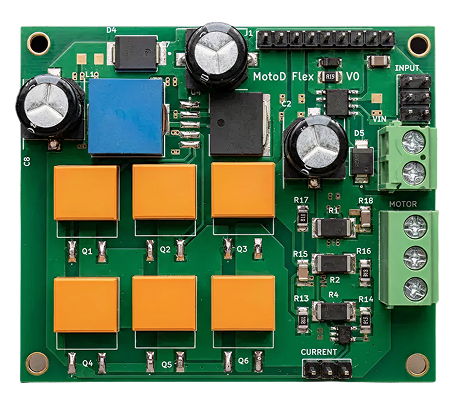

Versatile Driver:
MotoD Flex V0
Seamless integration with Arduino, ESP32, STM32
Engineered for maximum flexibility, allowing for control using common microcontrollers, including Arduino, STM, and ESP platforms. This compatibility significantly simplifies integration into your existing or future control systems.
Motor Voltage:
12-48V DC
Continuous Current:
20A per phase (with cooling)
Max current:
30A (short-term)
Compatible Motors:
BLDC, Brushed DC
Control Method:
PWM Frequency/ Up 50 khz
Operating Temperature:
-20°C to +65°C
TECH SPECIFICATIONS
Specifications | ↓ |
|---|---|
Motor Voltage: | 12-48V DC |
Continuous Current: | 20A per phase (with cooling) |
Max current: | 30A (short-term) |
Compatible Motors: | BLDC, Brushed DC |
Control Method: | PWM Frequency/ Up 50 khz |
Operating Temperature: | -20°C to +65°C |
